How to setup SAML SSO with Rocketlane using Okta?

Created by Niharika Pandey, Modified on Tue, 06 Feb 2024 at 06:57 PM by Niharika Pandey

Plan Availability
Essential
Standard
Premium
Enterprise

This help document introduces you to SSO and IdPs and how to configure SAML SSO for Rocketlane using Okta IdP.

What is SSO?

Single sign-on (SSO) is an authentication method that enables users to securely authenticate with multiple applications and websites by using just one set of credentials.

What are Identity Providers (IdPs)?

An identity provider (IdP) is a service that stores and verifies user identity. IdPs are typically cloud-hosted services, and they often work with single sign-on (SSO) providers to authenticate users. Some examples of IdPs are Okta, Google Workspace and azure AD.

Creating a SAML SSO App Integration using Okta

Login to Okta. In case you do not have an Okta account, create one.

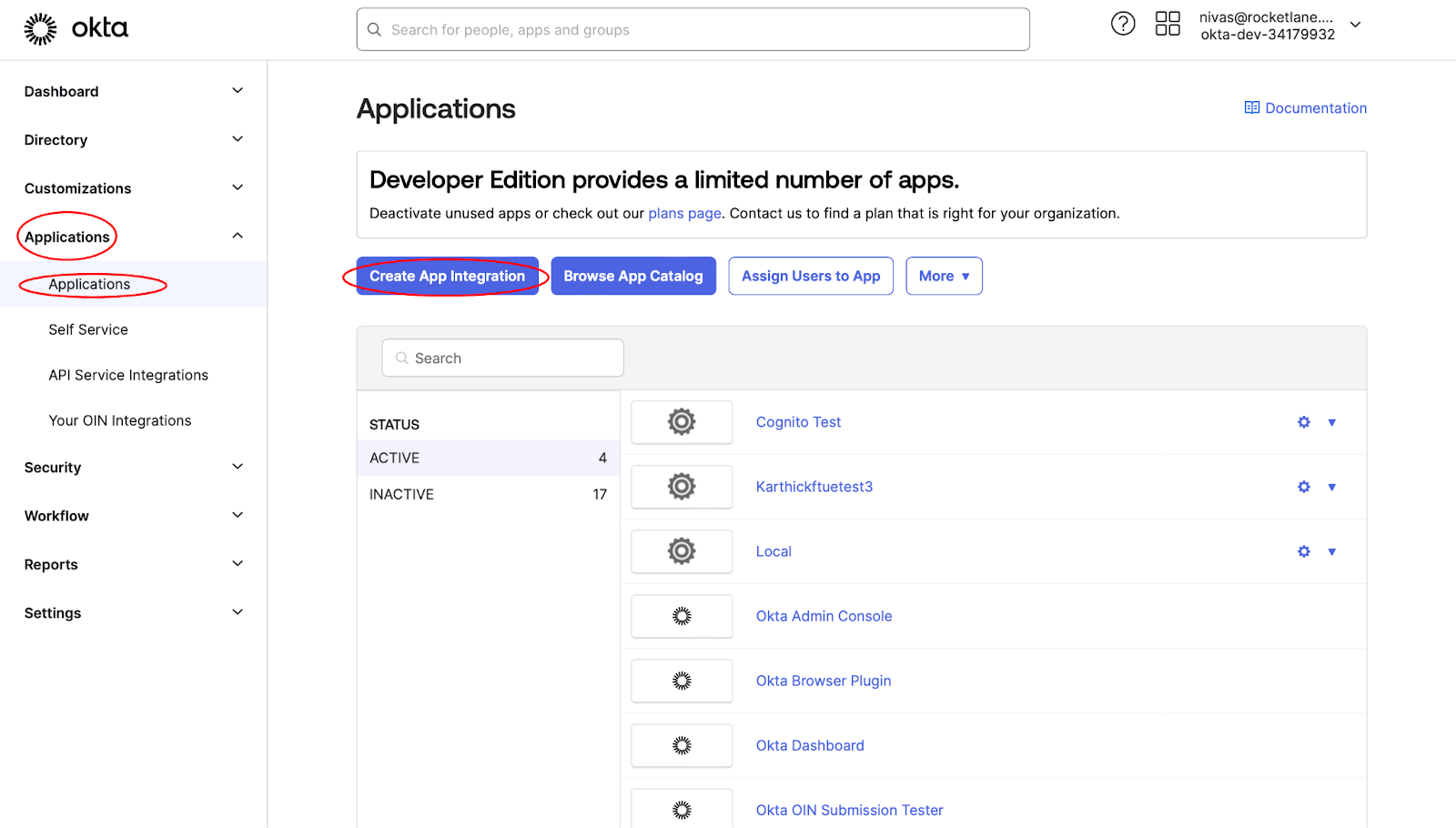

From the left Nav bar, go to Applications > Applications.
Click on the 'Create App Integration' button.

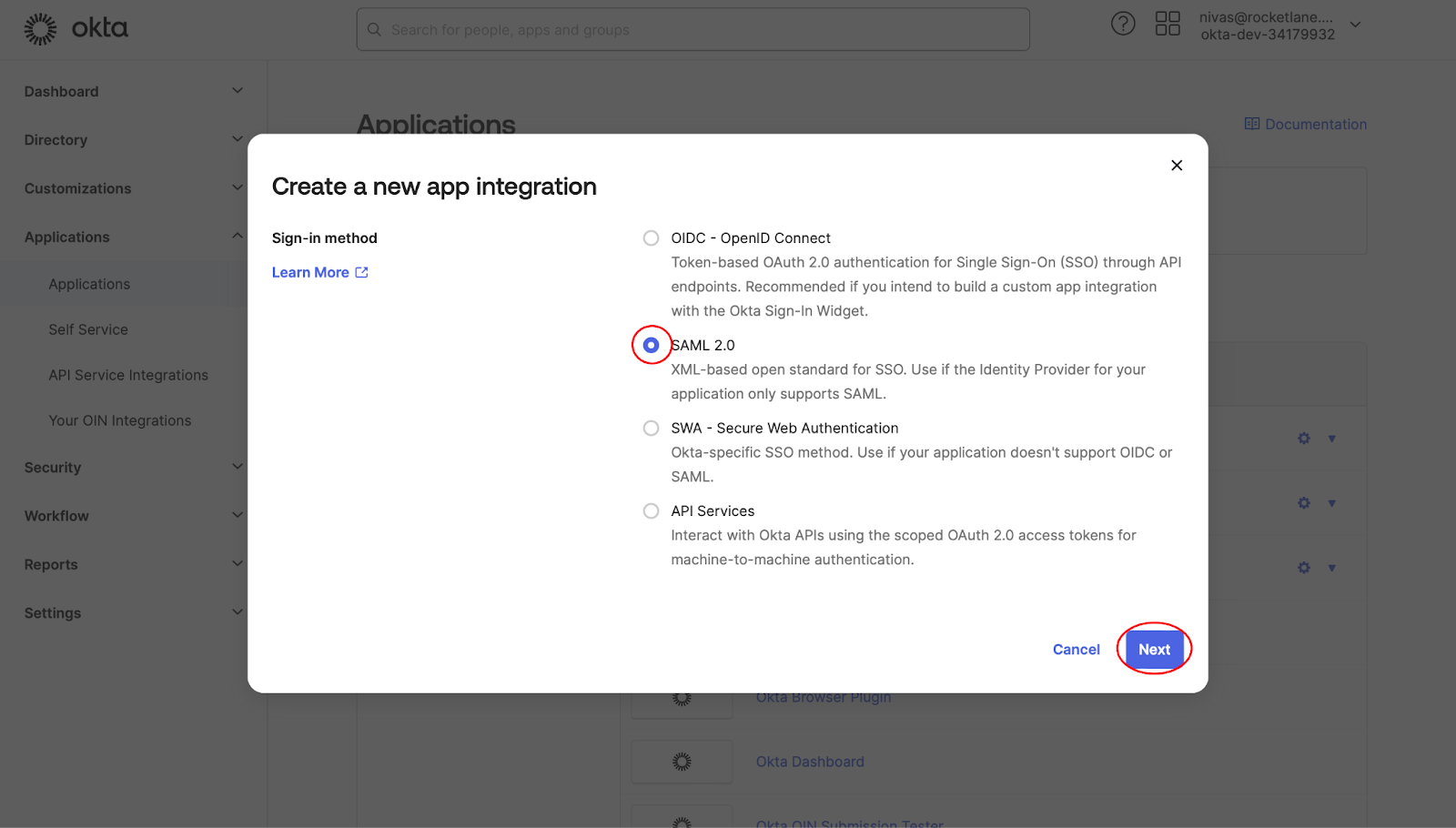

In the 'Create a new app integration' choose the SAML 2.0 option and click Next.

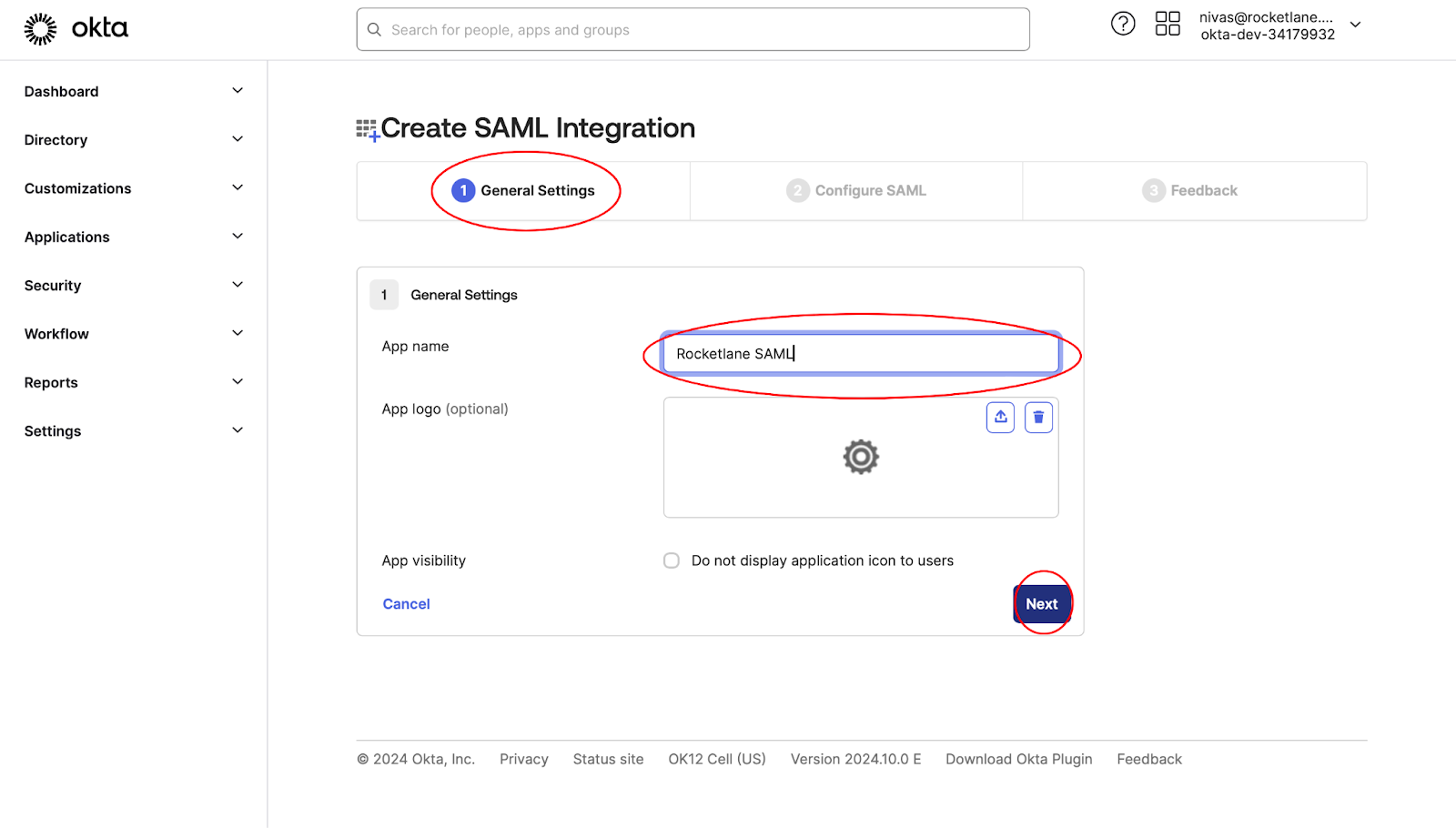

You will be redirected to the 'Create a SAML Integration page' on the General Settings tab.

App Name: Give your Organisation's name.

App Logo: Give your Organisation's Logo.

App Visibility: You can choose not got display the app icon to users and in the Okta Mobile app through these check boxes.

Click Next after setting up General Settings.

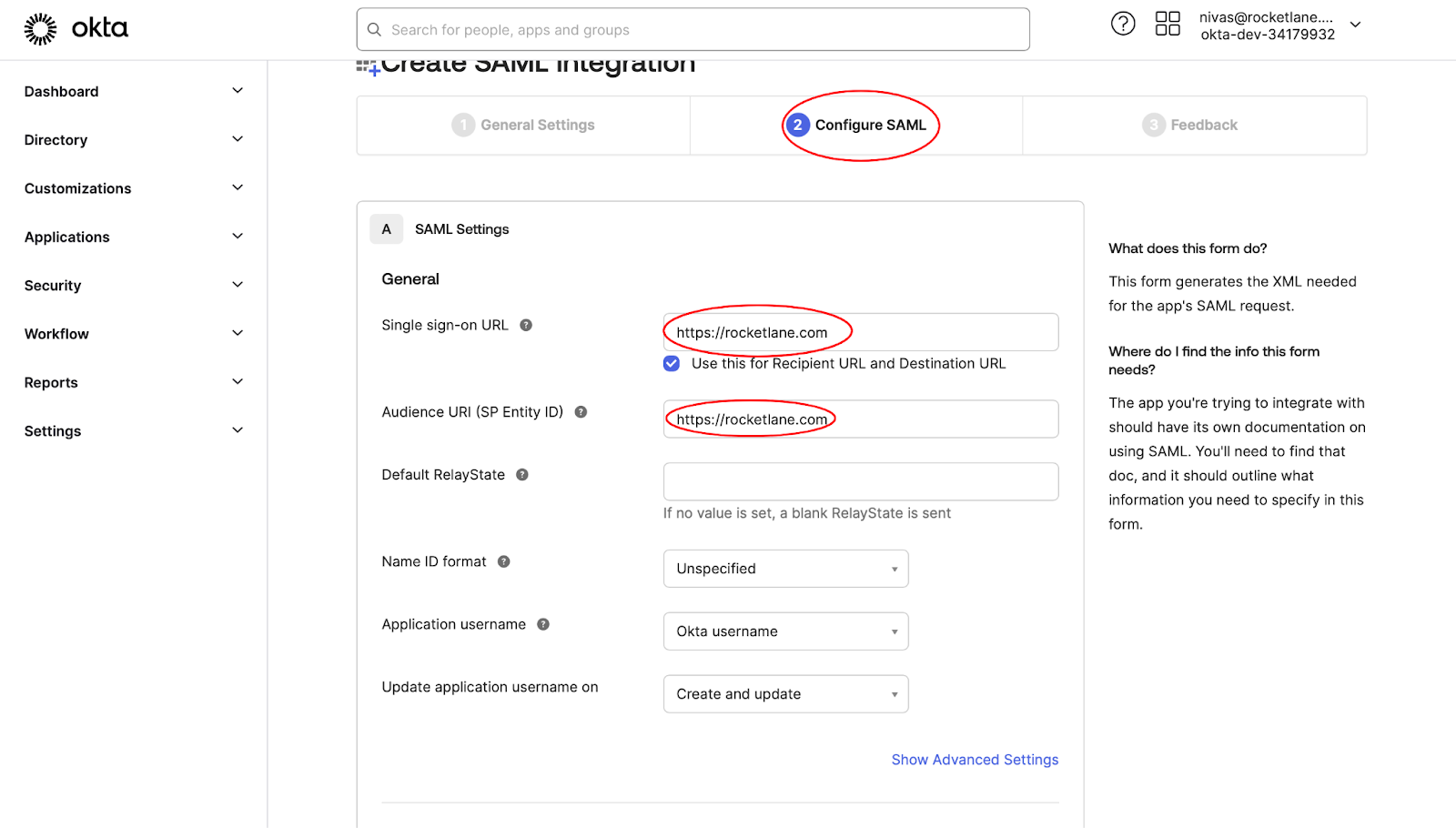

In Configure SAML tab, provide dummy urls for these fields as these fields are mandatory.

Single sign on URL

Audience URI (SP Entity ID)

Default RelayState (Add your Rocketlane URL eg: https://acme.rocketlane.com)

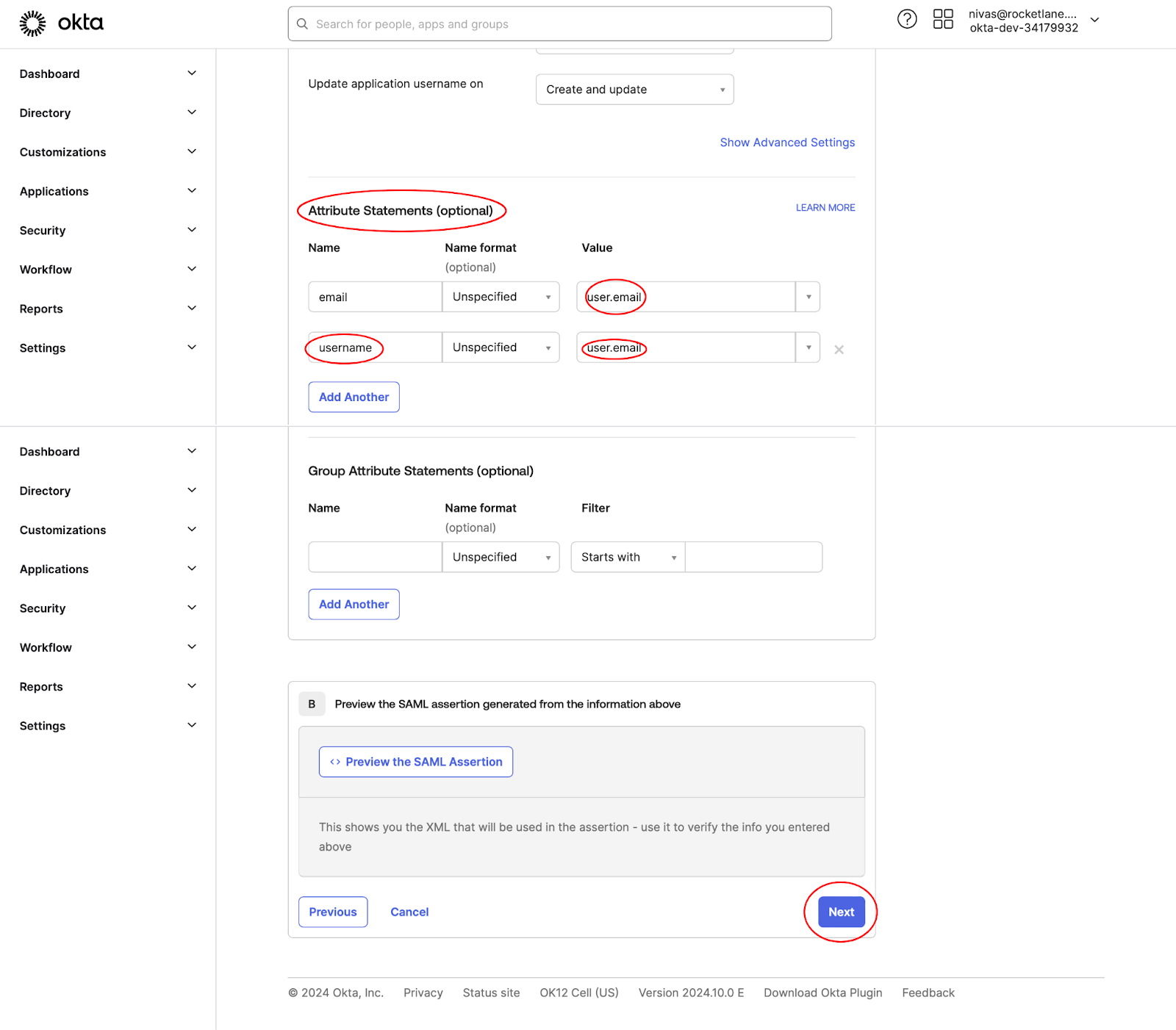

Continuing in the 'Configure SAML' tab, scroll to the 'Attribute Statements (optional)' section.
Add an attribute. Add email as the Name and choose the Value as user.email
Click on 'Add Another' and add the attribute Name as username and choose the Value as user.email
Click Next.

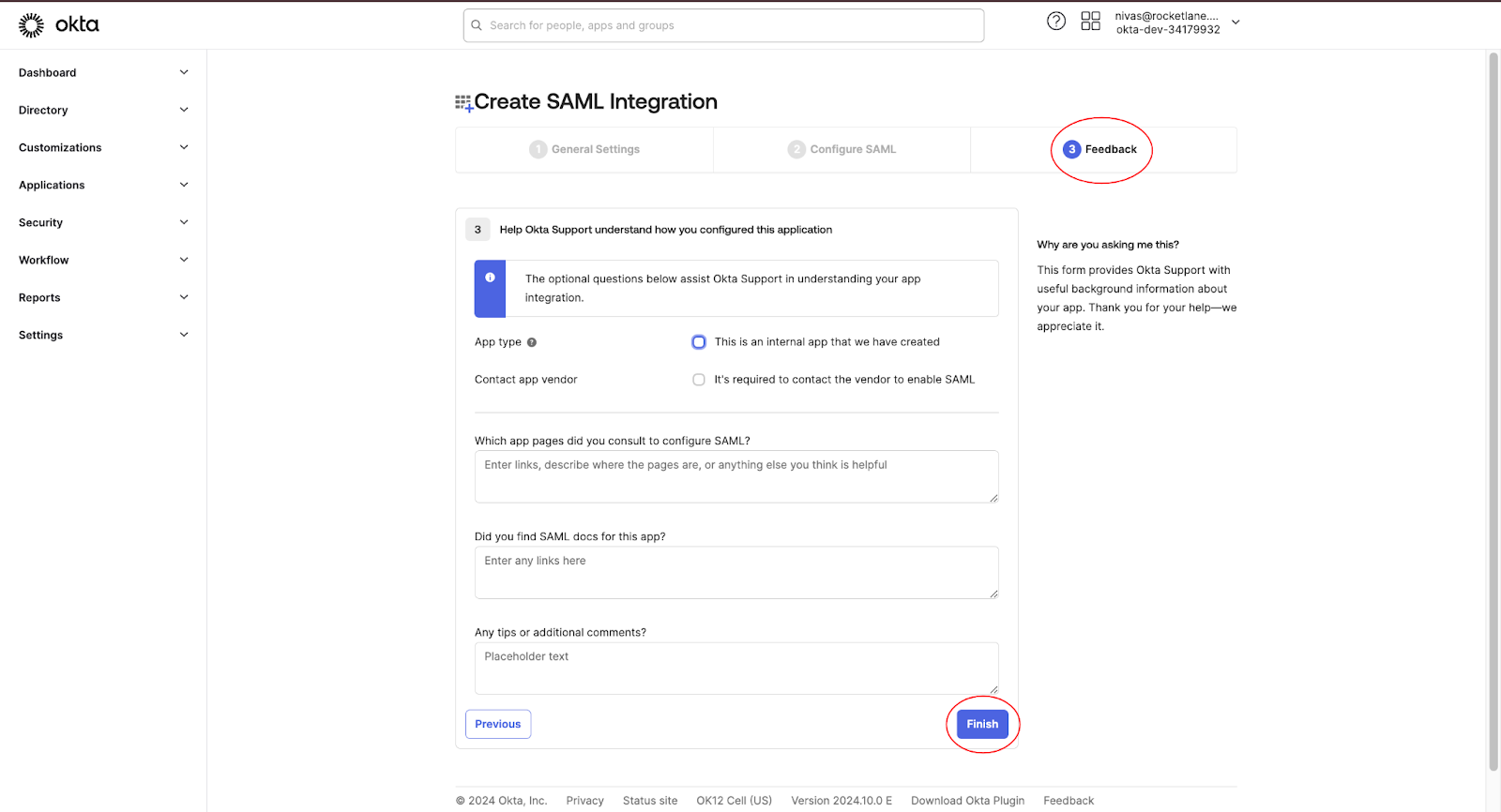

In the Feedback tab, choose if you are a customer or a partner. Click Finish.
You will be redirected to your App's Integration page.

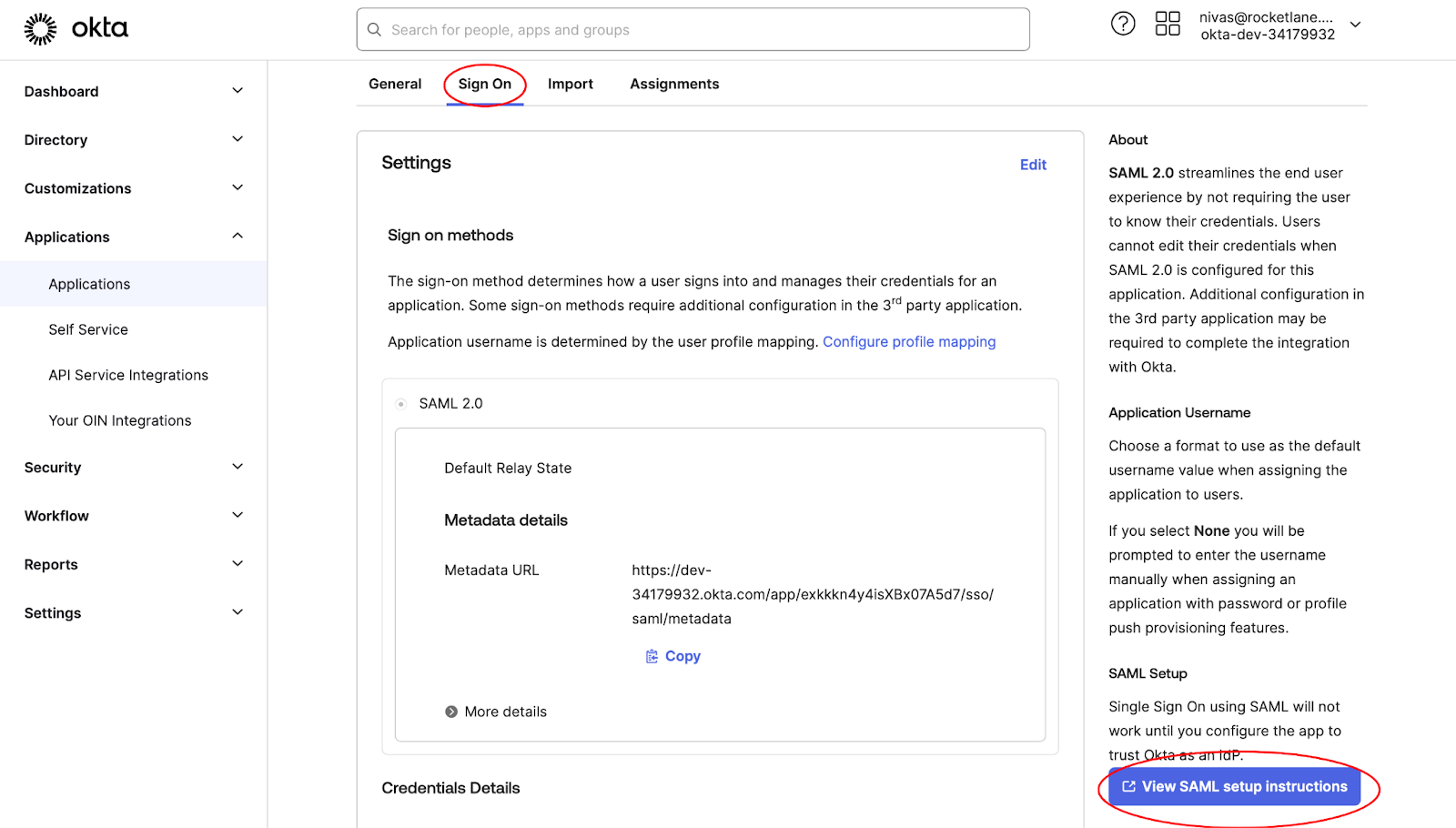

From the Sign On tab, scroll and go to 'View SAML setup instructions' from the right side of the screen.

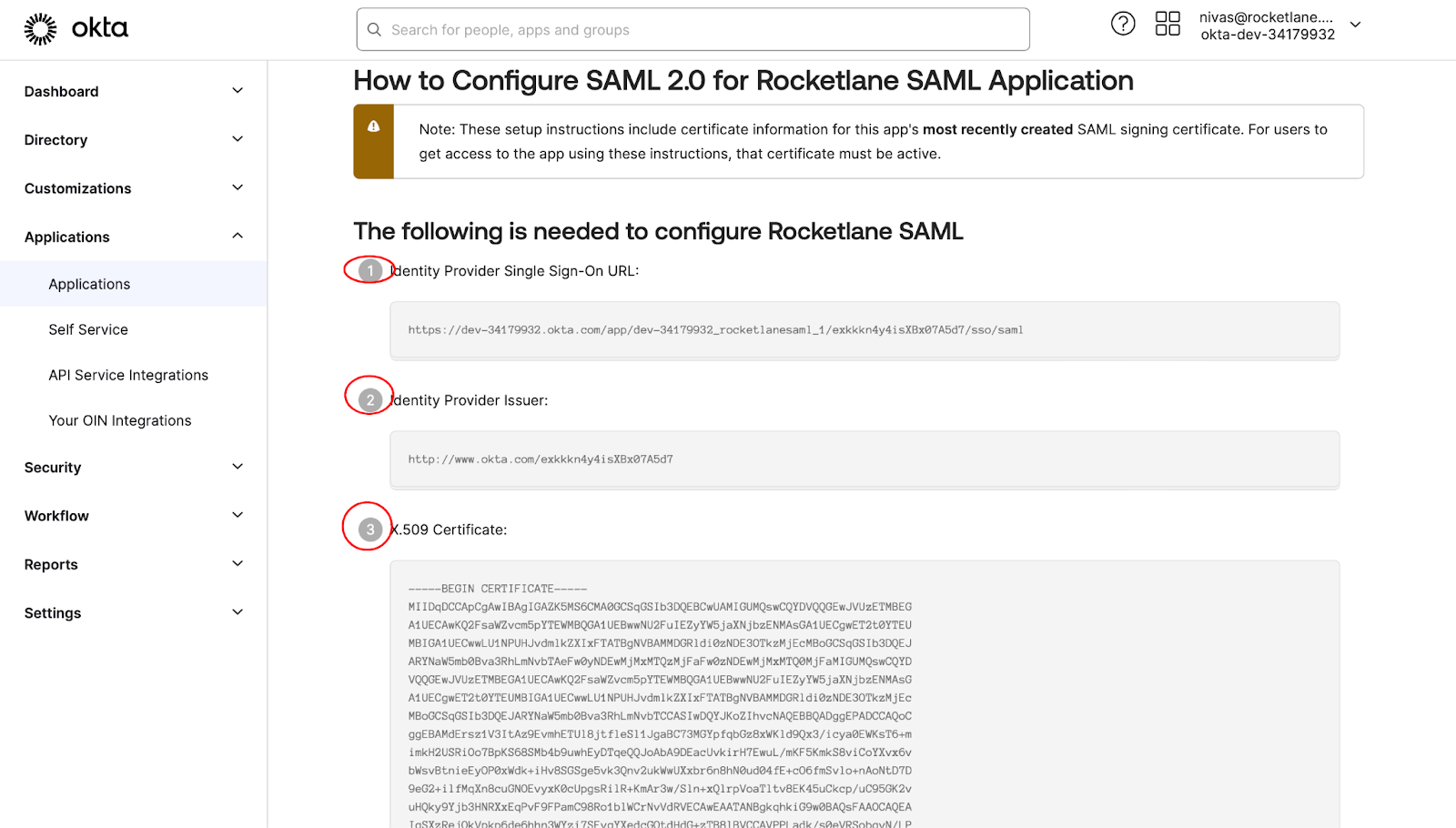

This will redirect you to the page: How to Configure SAML 2.0 for Your Application. You will need these to configure SAML on Rocketlane.

Authenticating SAML with Rocketlane

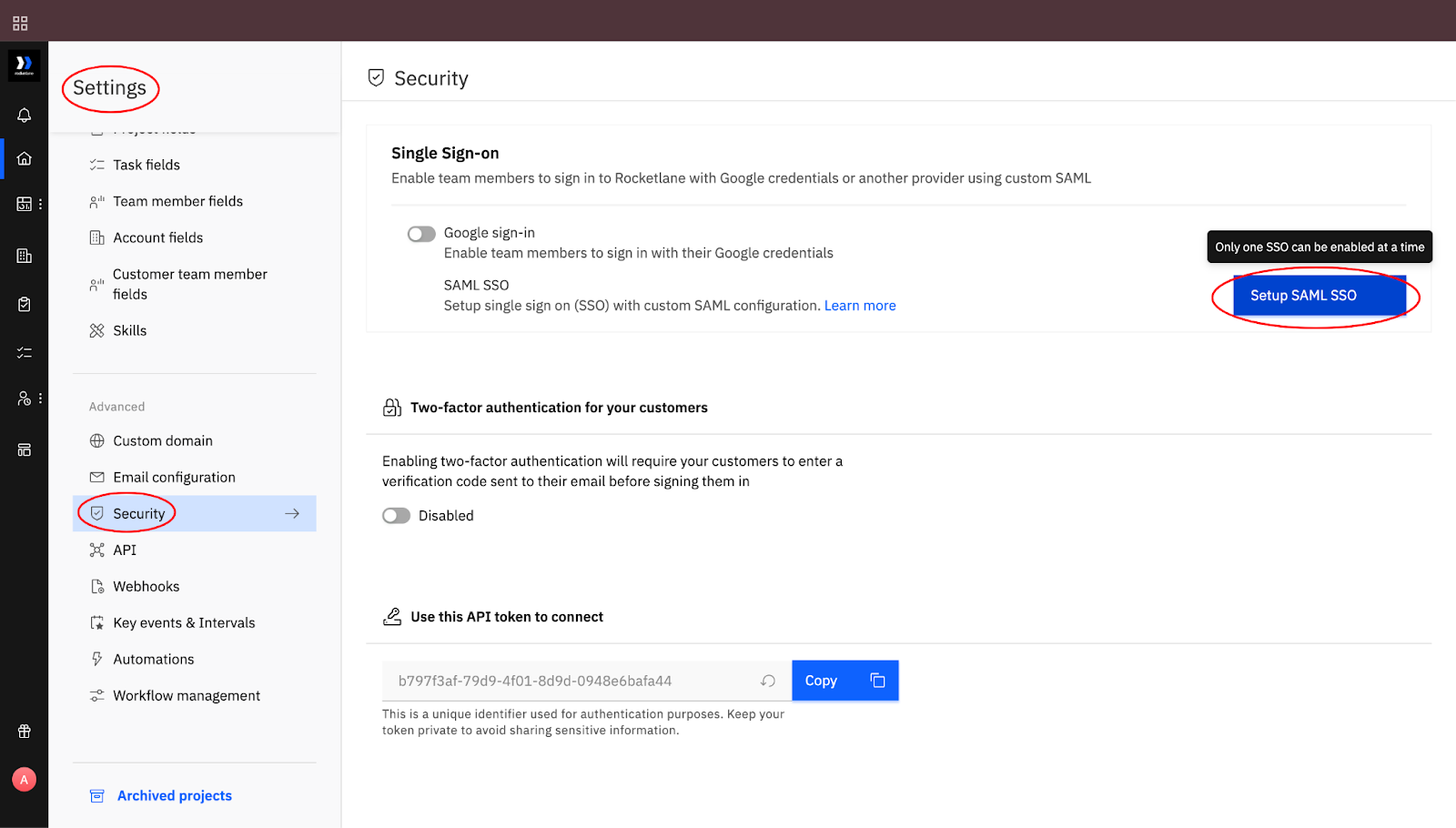

From your Rocketlane account, go to Settings > Security.
Click on the 'Setup SAML SSO' button.
The 'Setup SAML SSO' dialog box opens.

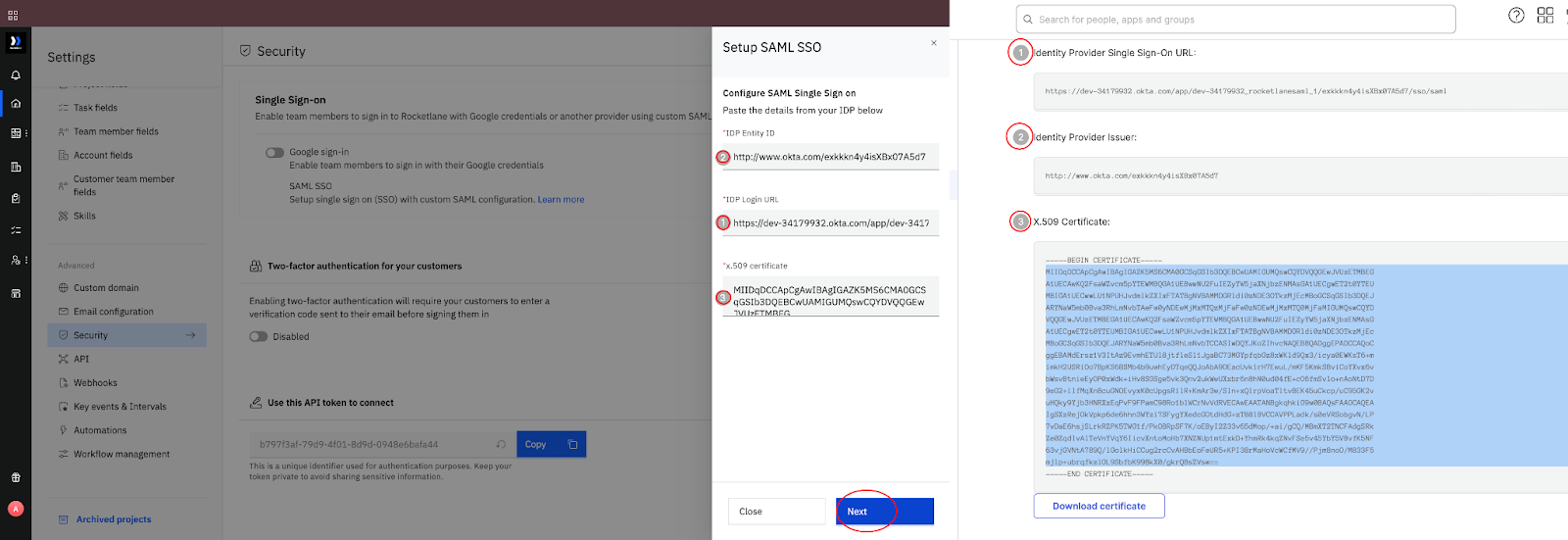

Copy values from the page: How to Configure SAML 2.0 for Your Application to your SAML SSO setup dialog box in Rocketlane according to this table:

*How to Configure SAML 2.0 for Rocketlane Application*	*Rocketlane App: Setup SAML SSO*
Identity Provider Single Sign-On URL	IDP Login URL
Identity Provider Issuer	IDP Entity ID
X.509 Certificate	X.509 Certificate

Note: Do not copy the Header and Footer while copying the certificate.

Click Next. The 'Do you want to enable SAML SSO' dialog box appears.
Go back to the Okta window and go to General > SAML Settings > Edit.
Click Next for General Settings.

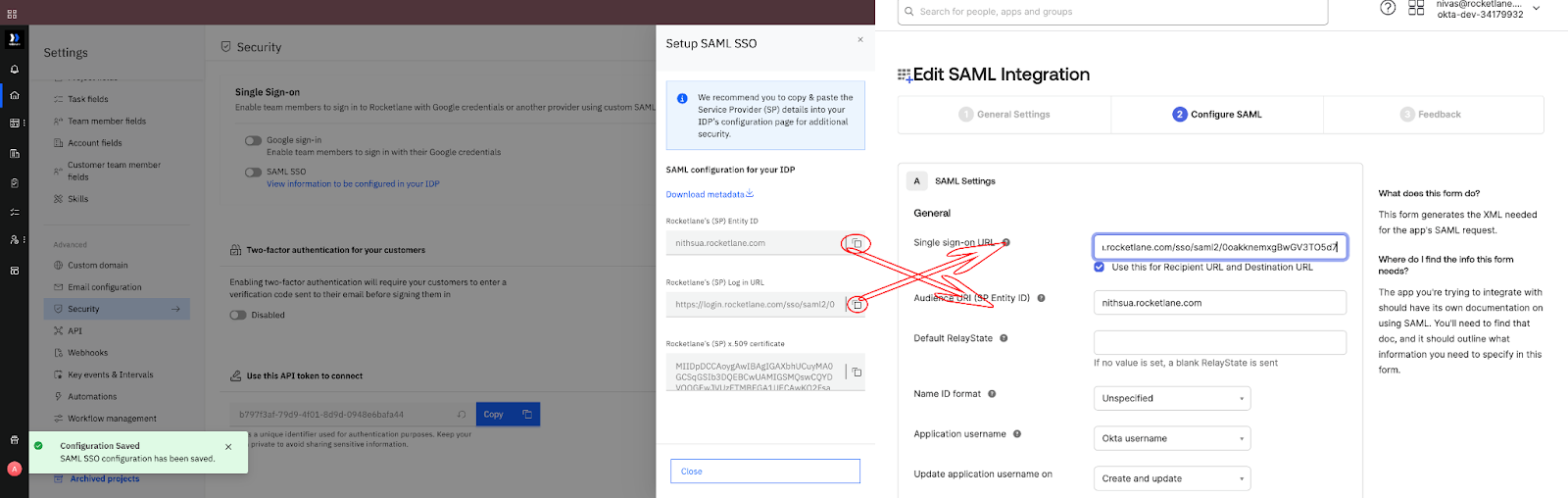

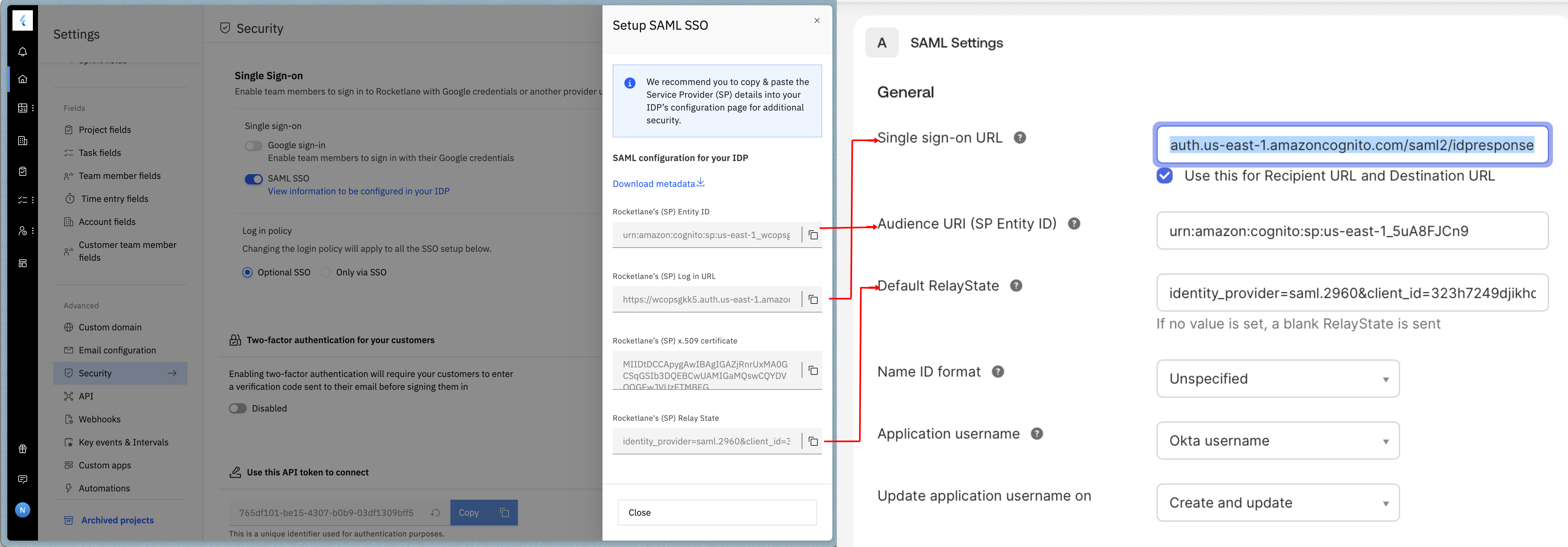

In the 'Configure SAML' tab under the 'SAML Settings' section provide:

Enter Rocketlane’s (SP) 'IDP Log in URL' for the 'Single sign on URL' field.
Rocketlane’s 'IDP Entity ID' for the 'Audience URI (SP Entity ID)' field in Okta window.
Click Next and then Finish in Okta.

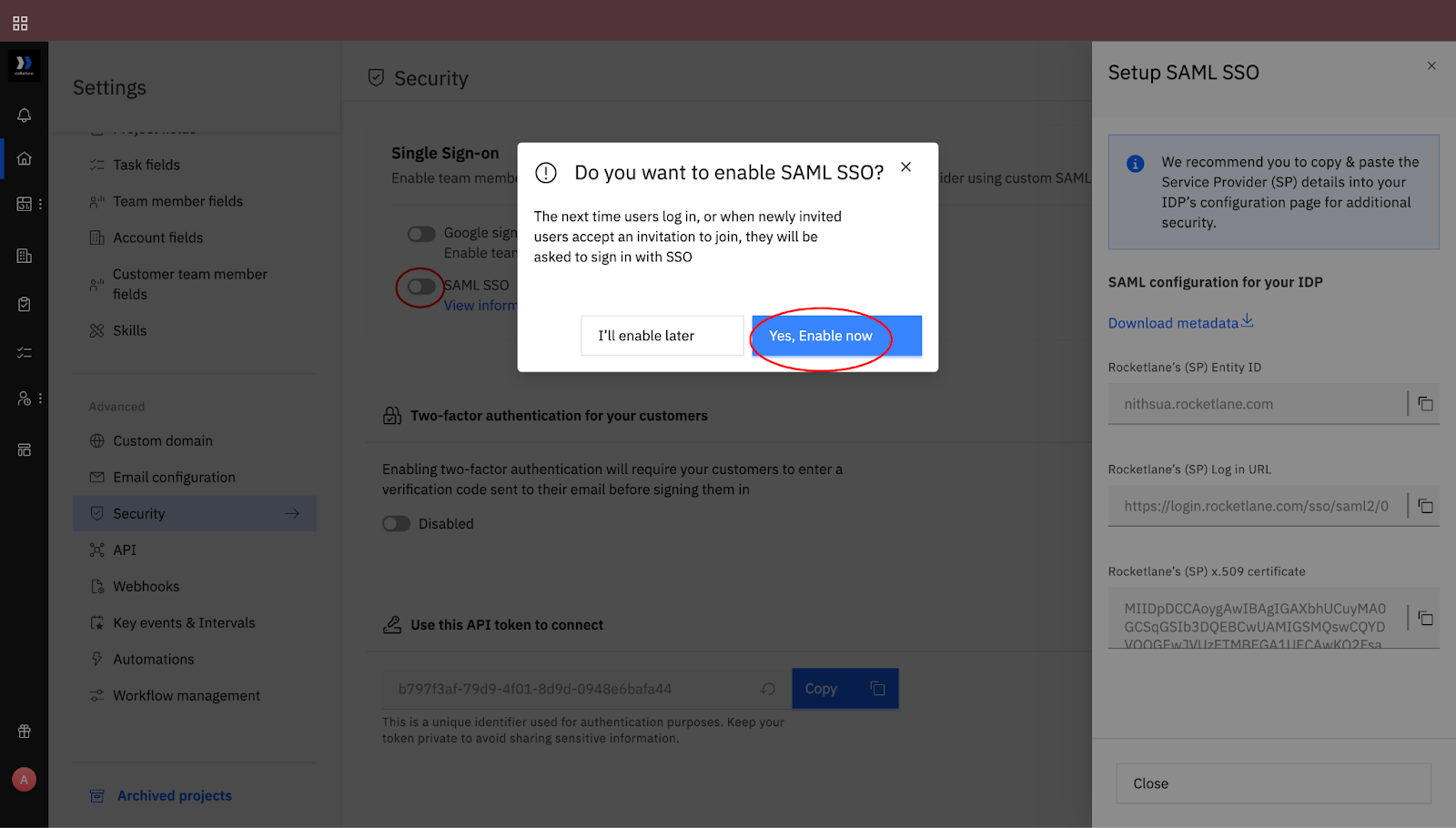

Go back to Rocketlane and choose the option: 'Yes, Enable now' from the 'Do you want to enable SAML SSO' dialog box.

Adding People to your SAML App

From your App Integration page in Okta, go to Assignments tab.
Go to Assign > Assign to people.
In the Assign your app to people dialog box, click on assign next to the username.
You will be asked to confirm the username. Click Save and go back.
Notice the username that you assigned says Assigned now. Click Done.
Notice that the assignment has been added to your Assignments list.
